COUPLING AND ELEMENTS

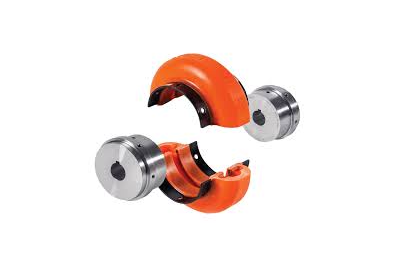

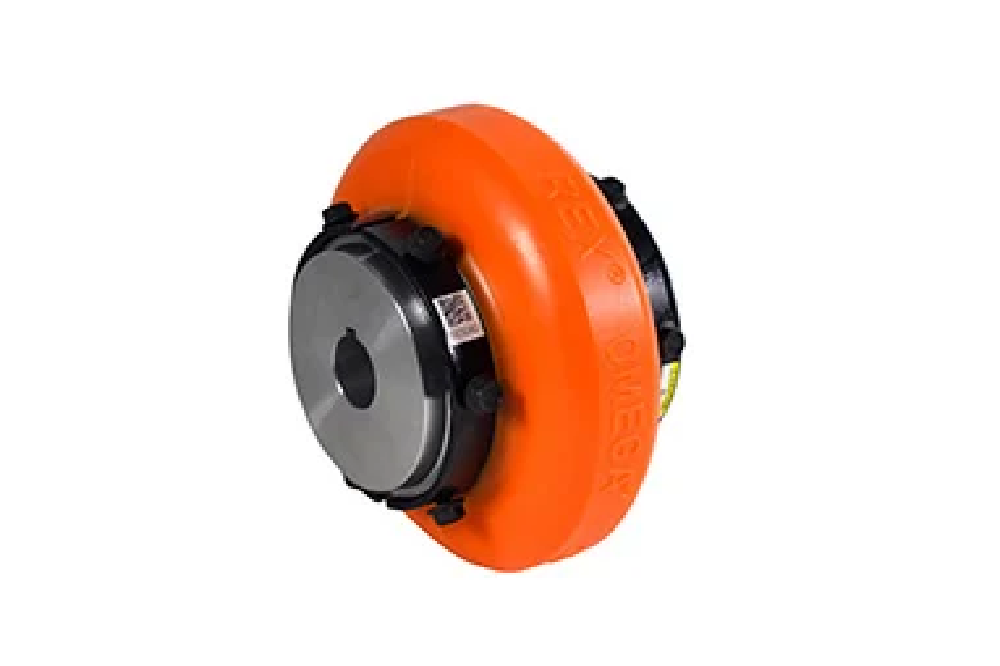

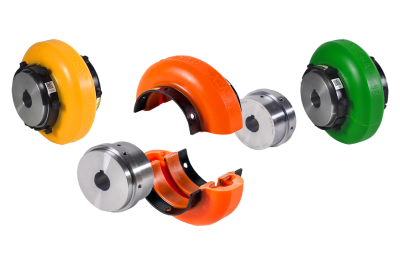

OMEGA COUPLING

An Omega coupling is a type of elastomeric flexible coupling recognized for its distinctive split-in-half design, which enables quick installation and easy replacement of the flexible element without disturbing the connected machinery. It is engineered to transmit torque efficiently while accommodating angular, parallel, and axial shaft misalignment. The elastomeric element helps dampen vibration, reduce noise, and absorb shock loads, protecting connected components from excessive stress. Omega couplings are widely used in pumps, compressors, conveyors, and industrial drive systems. Their fail-safe operation, low maintenance requirements, and ability to compensate for alignment variations make them a reliable and cost-effective solution for smooth and efficient power transmission.

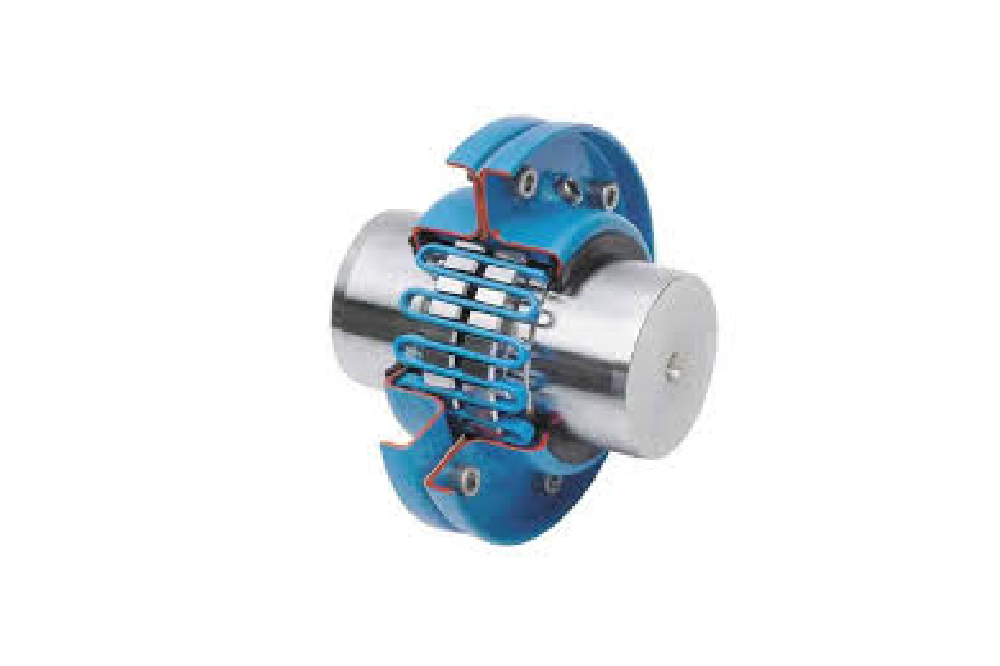

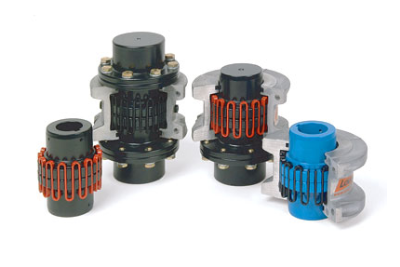

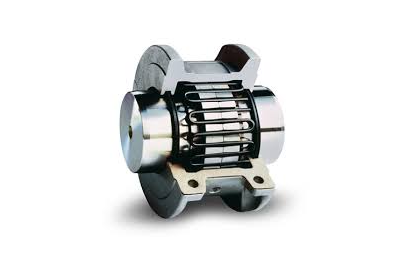

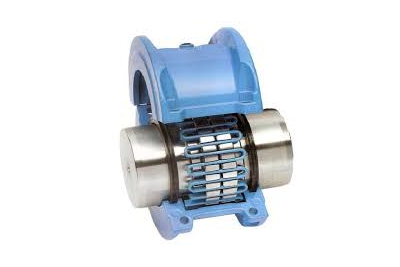

Grid coupling

A grid coupling is a metallic flexible coupling that uses a serpentine or tapered steel grid element to transmit torque between two slotted hubs. This design allows the coupling to accommodate angular, parallel, and axial shaft misalignment while maintaining reliable power transmission. The steel grid flexes under load, effectively dampening vibration and absorbing shock loads, which helps protect connected equipment from damage. Grid couplings are known for combining the high torque capacity of gear couplings with the flexibility of elastomeric couplings. Commonly used in pumps, compressors, conveyors, and heavy industrial machinery, they offer durability, reduced maintenance, and dependable performance in demanding operating conditions.

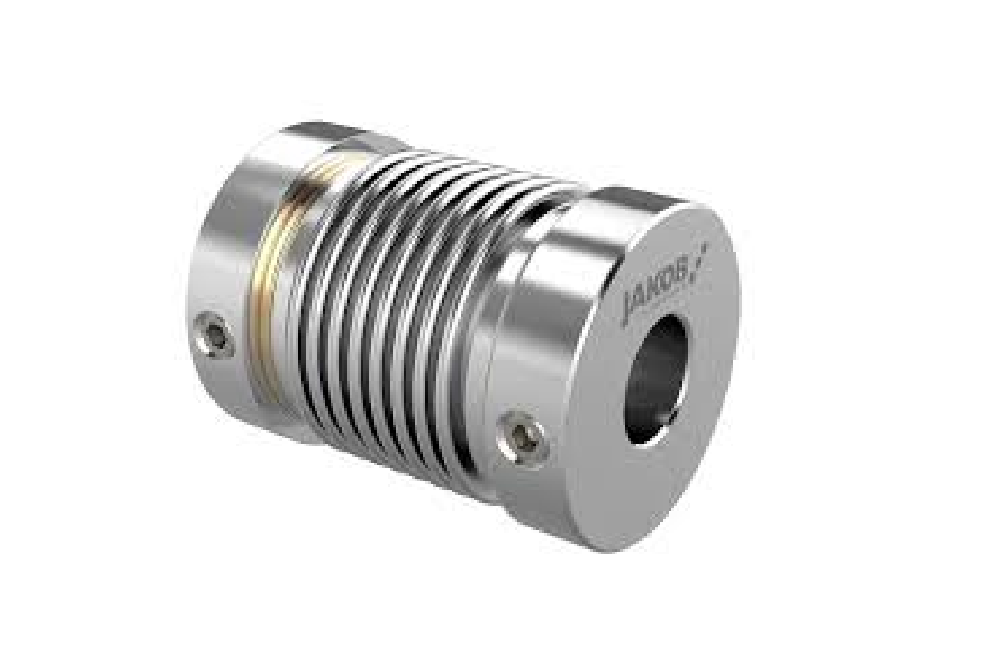

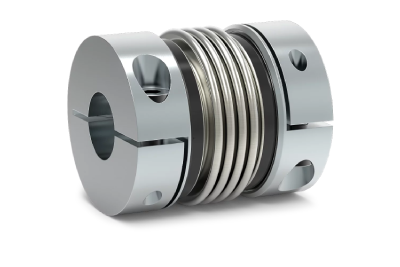

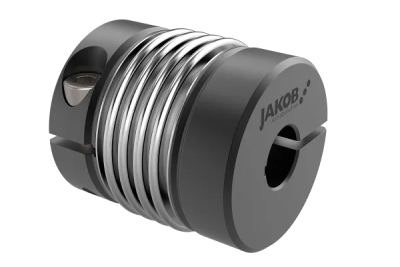

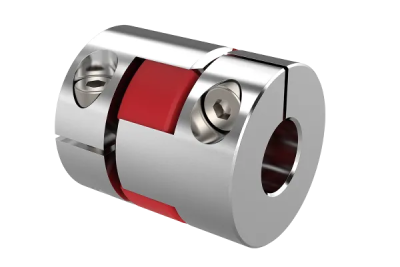

Miniature coupling

A miniature coupling is a compact mechanical component designed to connect two small-diameter shafts, typically ranging from 3 mm to 24 mm, for accurate transmission of torque and rotational motion. These couplings are widely used in low-power, high-precision applications where space is limited. They are engineered to provide zero or near-zero backlash, high torsional stiffness, and smooth rotational accuracy. Miniature couplings can accommodate minor angular, axial, and parallel shaft misalignments while minimizing vibration and positioning errors. Common applications include robotics, medical devices, encoders, stepper motors, automation equipment, and precision instruments, where reliable performance, repeatability, and compact design are critical.

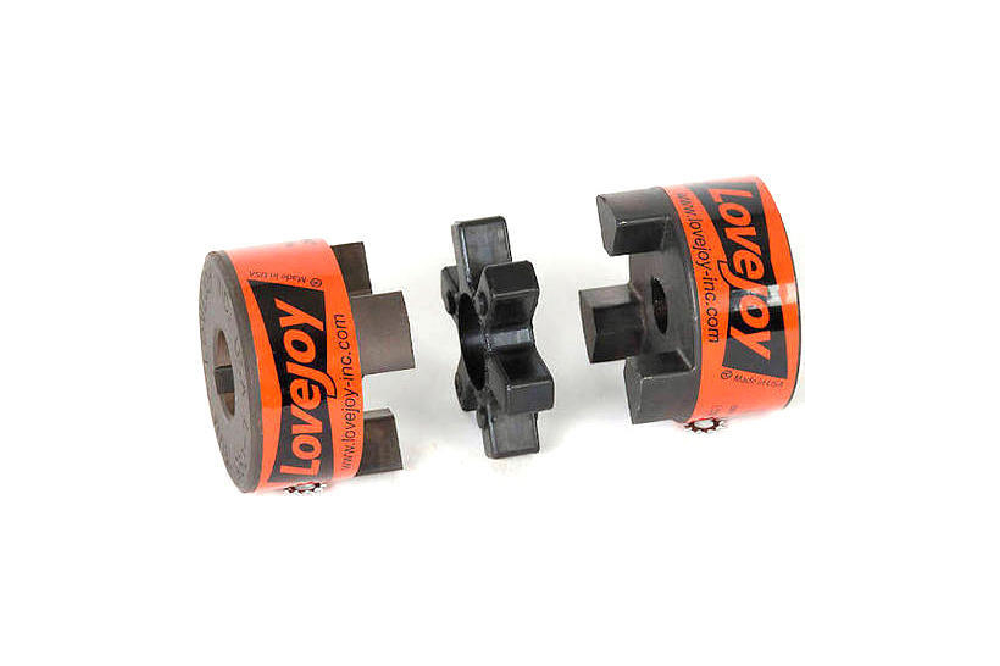

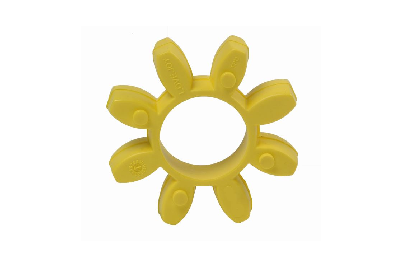

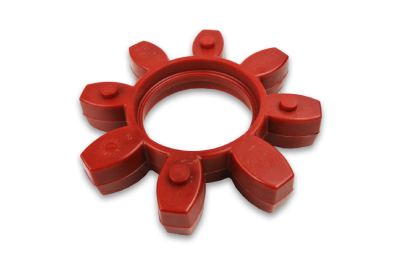

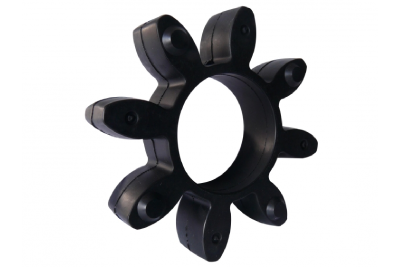

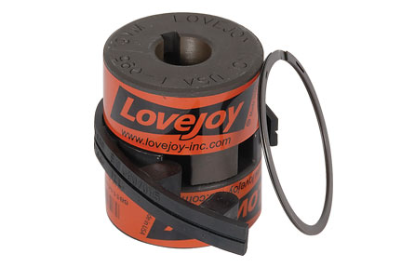

LOVE JOY COUPLING

A Lovejoy coupling is a widely recognized power transmission component produced by the Lovejoy brand, now part of The Timken Company, with the jaw-style coupling being its most well-known design. Lovejoy pioneered the jaw coupling concept, which has since become an industry standard. These couplings are used to connect two rotating shafts and efficiently transmit torque while accommodating angular, parallel, and axial misalignment. The elastomeric spider element between the jaws helps dampen vibration, reduce noise, and absorb shock loads, protecting connected equipment. Commonly used in pumps, compressors, motors, and conveyors, Lovejoy couplings are valued for their durability, ease of installation, and low maintenance requirements.

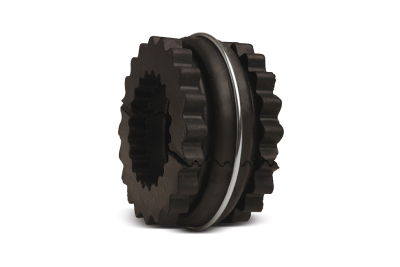

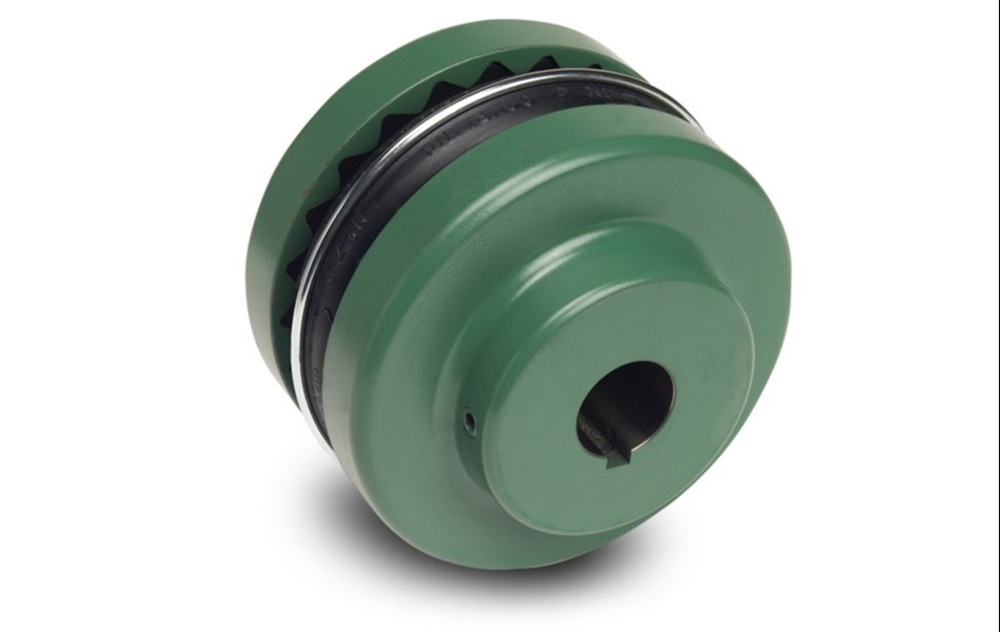

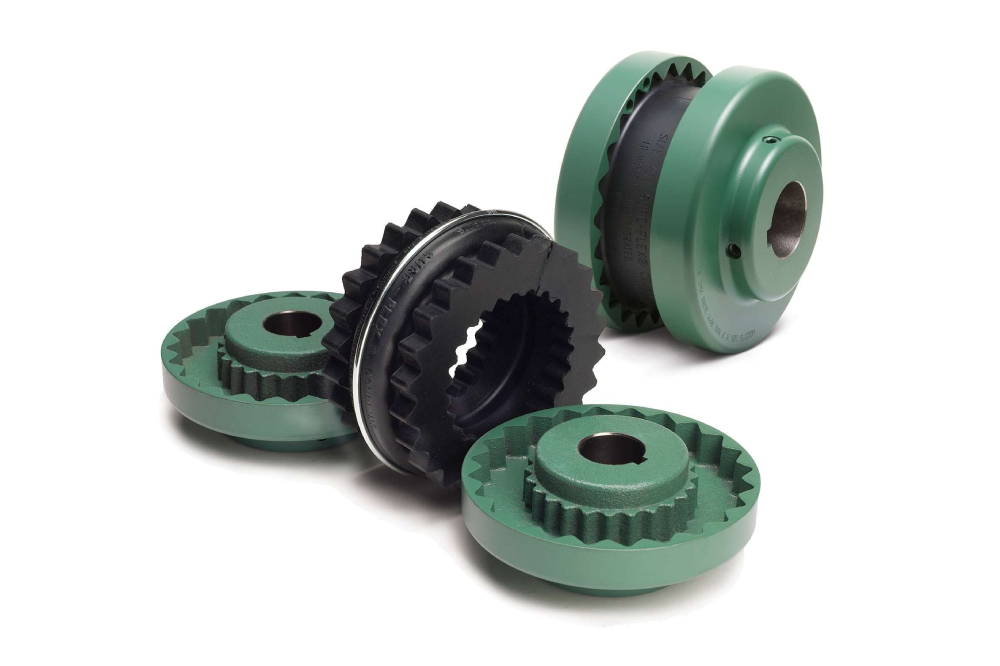

Sure flex coupling

The Sure-Flex coupling is an elastomeric flexible coupling designed for smooth and reliable power transmission with minimal maintenance. It features a flexible sleeve made from EPDM rubber, Neoprene, or Hytrel, which enables a unique four-way flexing action. This design allows the coupling to absorb shock loads, dampen vibration, and accommodate angular, parallel, and axial shaft misalignment. Sure-Flex couplings transmit torque efficiently without the need for lubrication, reducing downtime and operating costs. Commonly used in pumps, compressors, fans, and conveyor systems, they help protect connected equipment, extend service life, and ensure quiet, dependable performance in a wide range of industrial applications.

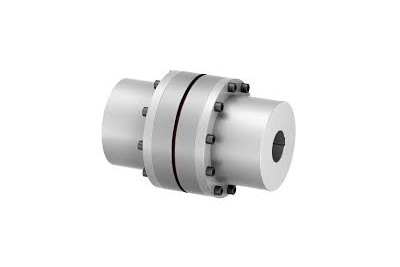

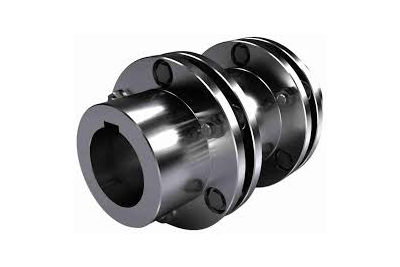

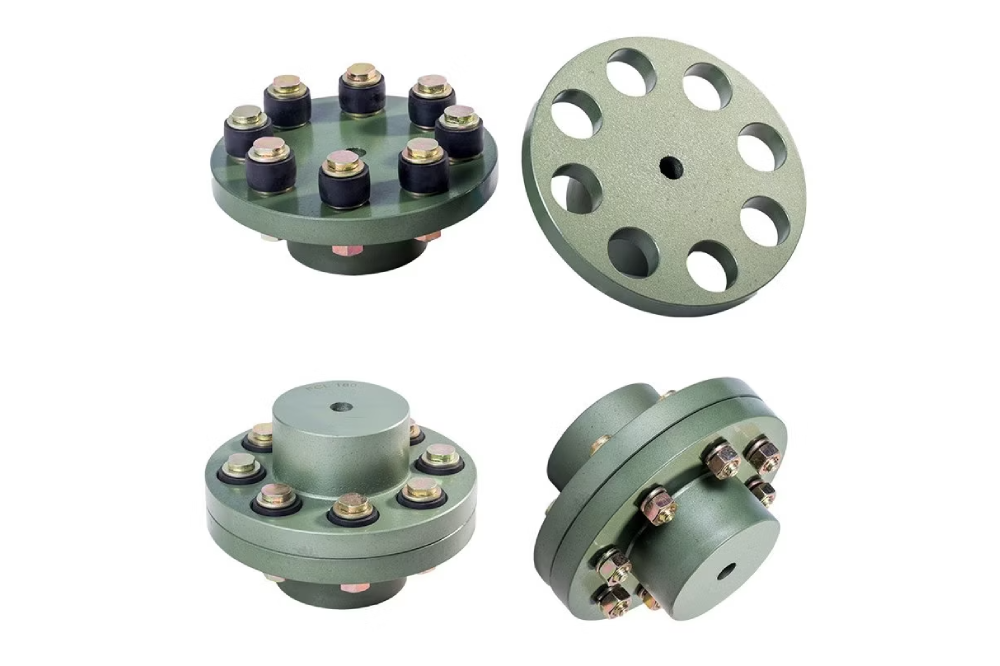

FLEXIBLE FLANGE COUPLING

A flexible flange coupling is a mechanical coupling that connects two shafts using flanged hubs with an integrated flexible element such as rubber, polymer, or a metallic disc or grid. This flexible component allows the coupling to transmit torque efficiently while accommodating angular, parallel, and axial shaft misalignment. It also helps absorb shock loads and dampen vibrations, reducing stress on connected machinery. Unlike rigid flange couplings that require precise alignment, flexible flange couplings provide greater tolerance for installation and operational movement. They are commonly used in pumps, motors, compressors, and industrial drive systems, offering improved reliability, reduced maintenance, and extended equipment life in demanding applications.

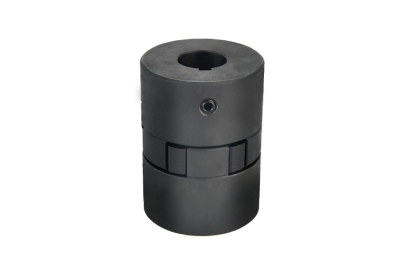

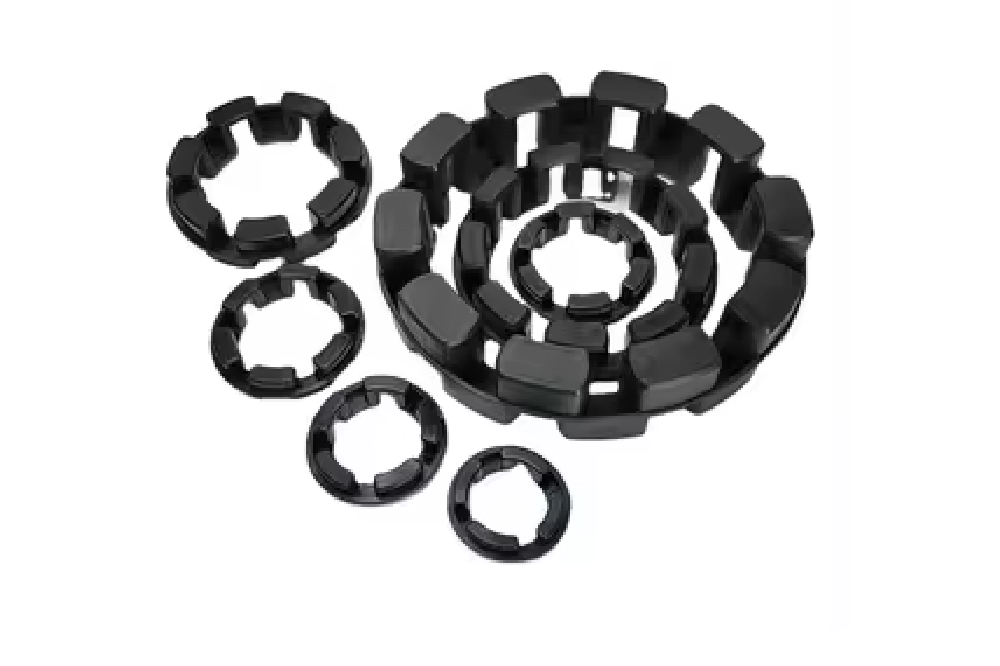

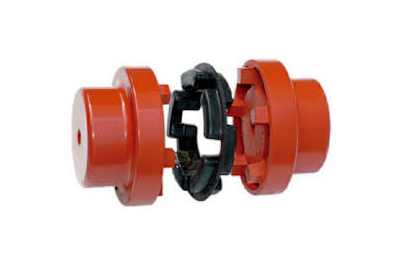

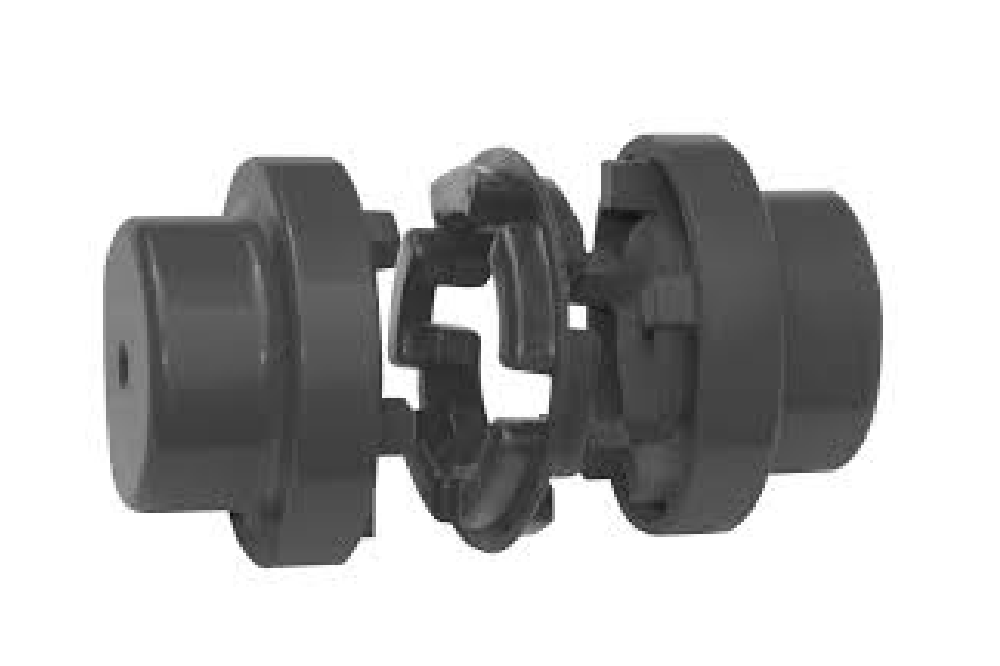

Normex coupling

A Normex coupling, also known as the RINGFEDER TNM or TSCHAN NM series, is a torsionally flexible, fail-safe jaw coupling widely used in general engineering and pump applications. It is designed to transmit torque reliably while accommodating angular, axial, and radial shaft misalignment. The coupling features two metallic hubs and an elastomeric element that absorbs shock loads, dampens vibration, and reduces noise during operation. Its fail-safe design ensures continued torque transmission even if the elastomer element is damaged. Normex couplings are valued for their durability, ease of installation, low maintenance requirements, and ability to protect connected equipment from dynamic loads and alignment variations.
